Pump Motor installation and pull out services in Bangladesh

Millat Pumps Limited we committed to providing an exceptional customer experience. We endeavor to build a lasting partnership with you and your organization. We have a one stop service for all of your mechanical equipment which you need we can ensure all components of your facility are operating efficiently and safely. Millat Pumps Limited believe in giving customer friendly and cost-effective services to ensure that the life-span of the repaired pump is equivalent to that of a new pump. We have a well-equipped machine shop and tools to take-up any kind of necessary salvaging work. Our team of experts provides a complete solution of Submersible pump installation service in Bangladesh, dismantling the pump from site, overhauling at ARC, re-installation of the pump at site, testing and commissioning. We use genuine spare parts required for servicing. The carefully selected assortment of Industrial water pump installation in Bangladesh service offered by Millat Pumps Limited is widely appreciated by the clients for its effectiveness and cost-efficiency. Some of the solutions offered by us include Repairing, Rewinding and Maintenance of all types of pumps & motors and Supply & Installation in industries, factories, garments and factories. These services comply with the set industry norms. We are offering this service in all over the Bangladesh.

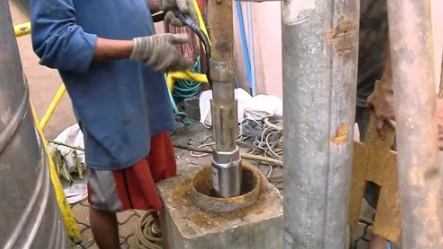

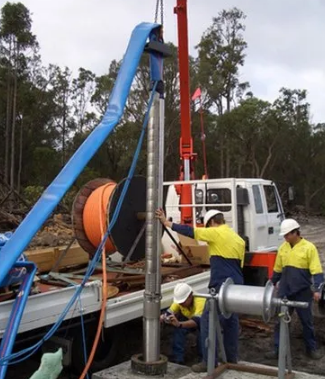

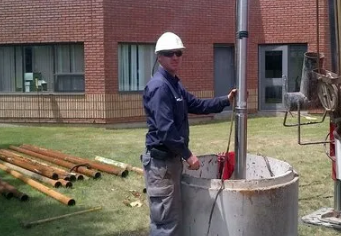

Submersible pump installation service in Bangladesh:

Refill the motor: The Submersible pump installation service in Bangladesh we follow some steps are executed prior to installation: we ensure, air bubbles, if any, are removed by gently rocking the motor to and fro. We must clear about that there is no leakage; the motor is now ready for coupling with the pump and then installation. Dry the exterior of the motor and check thoroughly for water leakage. The two threaded plugs are then re-assembled, ensuring the motor is encapsulated. We Check water level in the motor and if required, top up with cold clear water. Millat Pumps Limited’s engineer make sure the two threaded plugs provided at the top/circumference of the cable box are removed Check the motor and if required, top up the motor with clear cold drinking water. Technician Check if all fasteners are tight, Tighten if required for Submersible pump installation service in Bangladesh. We check Position the motor vertically on its base.

Submersible Pump, motor and cable joint Waterproofing:

We confirmed the insulating cable joint for underwater application: We know that the joint is always nearly submerged in underwater; the joint must needs to be waterproof. The free end of the 3-core cable of the motor needs to be connected to service cable from the control panel of the submersible pump. Usually Submersible Motors are supplied with 3-core insulated flat cable of length 3 meters.

The submersible motor to pump Coupling:

Millat Pumps Limited’s engineers check the play in assembled condition by lifting the shaft. We screw the short length of delivery pipe to the delivery casing. MPL apply threading compound to internal thread on the delivery casing and external threaded portion of the short length delivery pipe to be fitted to the delivery casing. We also must ensuring the couplings are fitted with motor shaft / pump shaft with grub screw. Hold the submersible motor vertical.

Free rotation checking:

Before coupling the pump set we ensure the pump and motor free rotation. We also ensure pump and motor shaft upward and downward movements for Submersible pump installation service in Bangladesh.

Rotation of motor direction Checking:

Millat Pumps Limited’s Submersible pump installation service in Bangladesh, we check in case the direction of rotation of the motor shaft does not match the marking on the cable box in three phase motor, interchange any two lead wires at the control panel and confirm as before. Our engineers ensure the direction of rotation is in the same direction as that marked on the cable box face, the connections are correct. We check the direction of rotation of the motor shaft. Our technicians connect free ends of the cable to control panel and energize the motor for a second or two. Submersible pump installation service in Bangladesh we carefully ensure the direction of rotation is counter-clockwise when viewed from the motor shaft end as marked on the cable box. we make sure the waterproofing then the joint connecting the submersible motor cable and supply cable, check if direction of rotation of the motor shaft matches the direction marked on the visible cable box top face.

Control Panel:

Submersible pump installation service in Bangladesh we check Ammeter and Voltmeter to display current and voltage are okay. We also ensure that Dry run preventer, Phase failure protection over voltage and under voltage protection, Contractors of sufficient current ratings with over-current relay. Our engineers ensure the joint is waterproof as cable joint is submerged in water. Technician checks the Connect of the cable properly to starter terminals to avoid loose connections. The cable must not be coiled if it is of extra length. It is very important to ensure any excess should be cut off before the connections are made.

Industrial Water Pumps:

Water pumps are used all over the world in different sectors, industries and factories. An industrial water pump is a device that increases water pressure to move water from one place to another internal and external. Industrial water pumps are essential equipment used in a wide range of industrial processes that require the transfer of liquids. For that reason it is must need to install these pumps are properly. So millat Pumps Limited is a trusted engineering farms for Industrial water pump installation in Bangladesh which working to install all the pumps within the proper guidelines. Water pumps are also used in wastewater treatment plants to move wastewater especially in garments factories. Most modern water pumps are powered by electricity, although other power sources, such as gasoline or diesel engines, are sometimes used.

Industrial water pump installation in Bangladesh:

The carefully selected assortment of Industrial water pump installation in Bangladesh offered by us is widely appreciated by the clients for its effectiveness and cost-efficiency. Some of the solutions offered by us include Repairing, Rewinding and Maintenance of all types of pumps & motors and Supply, Installation and commissioning. We are offering this service for all over Bangladesh. Millat Pumps Limited is providing Industrial water pump installation in Bangladesh to our clients for the entire required field. We have gained a commendable position in the industries and factories quality oriented products. We maintain a high standard of quality in the process so that the finished our works is defect less and strong. Our prompt service, and client-centric approach; we have increased the list of our satisfied clients.

Centrifugal Pump Installation:

We Millat Pumps Limited supply, install, test and commission centrifugal pumps of various sizes especially in industries. The Industrial water pump installation in Bangladesh is done keeping in mind the space required for service and inspection. The concrete foundation is required to absorb any vibration caused by the pump and to form a rigid support for the base plate. The centrifugal pump is installed as a complete unit as close to the source of the liquid as possible, on a concrete foundation with a solid base. For over 13 years we have been installing, maintaining and repairing centrifugal pumps across the Bangladesh. Our Engineers and technicians are factory-trained experts who understand the intricacies of engineering and service work. Millat Pumps Limited’s centrifugal pump experts can provide timely and professional guidance for both you and your company for Industrial water pump installation in Bangladesh. With a commercial and industrial department, there is no job too big or too small for our team as well as for our company.

Centrifugal Pump Installation and maintenance:

The Millat Pumps Limited’s specialist team will install centrifugal pumps for domestic, commercial and industrial premises. From the simple to the complex, our engineers and technician have the knowledge, and also the experience, to provide an efficient and professional installation. Proper Industrial water pump installation in Bangladesh is maintenance can extend the life of your system and ensures your system effectively maintains the proper discharge pressure.
